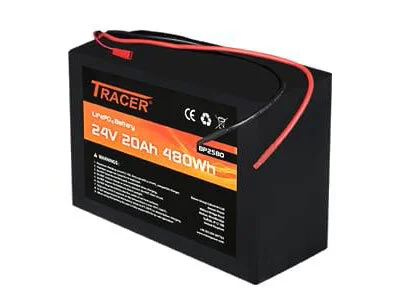

BP2580 Tracer 24V 20Ah Lithium Iron Phosphate (LiFePO4) Battery Module

Weight: 4.6kg

Dimensions: 216 x 150 x 100mm

Battery module with LED Fuel gauge.

These battery modules are for bespoke applications, ideal for fitting to customers’ designed equipment. The batteries use prismatic cells that create the lightest weight construction.

Supplied as a battery module with fuel gauge. Customers will need to choose a charger, a case and output leads if required to fit their bespoke equipment.

Key Features

• Extremely lightweight

• 1/3 weight of Sealed Lead Acid battery

• Small physical size

• Fuel gauge

• Longer lasting discharge

• Faster recharge time

• Suitable for many uses up to 30 AMP output current

• Overcharge and short circuit protected

• Temp. range (charging): 0°C – 40°C

• Temp. range(discharging): – 10°C – 60°C

Safety Features

Integrated Electronic ‘Battery Management System’ (BMS) provides the following protection:

• Overcharge & over-discharge protection

• Thermal protection

• Over current protection

• Short circuit protection
